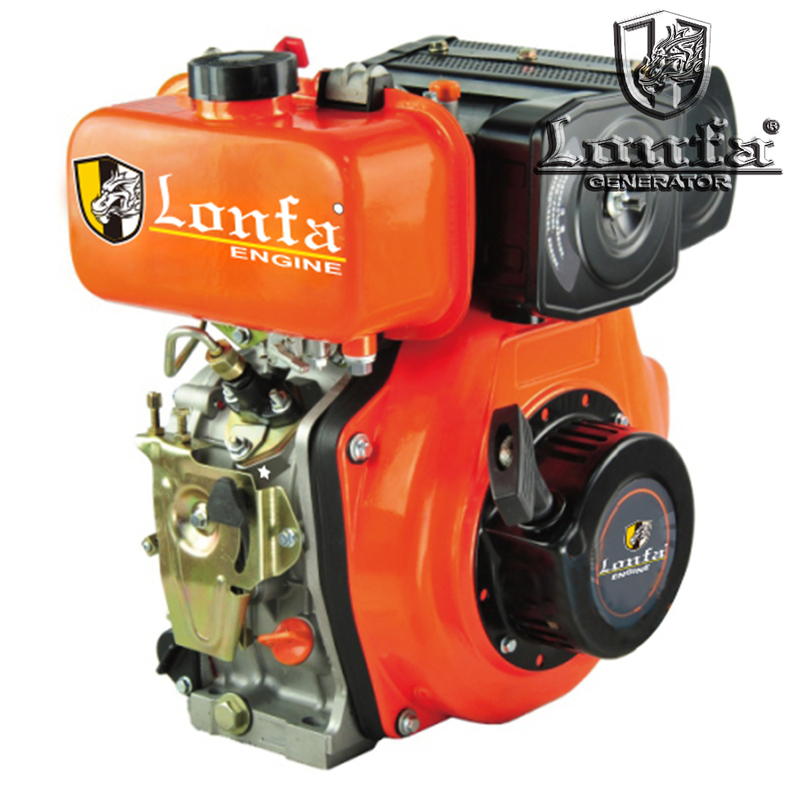

10HP Diesel Engine,Diesel Engine China,Recoil Engine,Pump Engine,Portable Engine
FEATURES:
* Qualified mechanical seal device
* Single-cylinder;4-stroke air-cooled diesel engine
* Easy Recoil/Electric start
* Compact structure
* Fuel Capacity 5.5L
* Overseas service centre
10HP Diesel Engine,Diesel Engine China,Recoil Engine,Pump Engine,Portable Engine
FEATURES:
* Qualified mechanical seal device
* Single-cylinder;4-stroke air-cooled diesel engine
* Easy Recoil/Electric start
* Compact structure
* Fuel Capacity 5.5L
* Overseas service centre
| Engine(Diesel Engine) Specification |
| NAME | ITEM | LFD170F | LFD178F/FA | LFD186F/FA |
| Diesel Engine | EngineType | Single cylinda;4-stroke;air-cooled diesel engine |
| Combustion system | Direct Injection |
| Bore x Stroke(mm) | 70x55 | 78x62/78x64 | 86x70/86x72 |
| Displacement(CC) | 211 | 296/305 | 406/418 |
| Engine Speed(rpm) | 3000 | 3600 | 3000 | 3600 | 3000 | 3600 |
| Maximum Output(hp) | 3.8 | 4.2 | 5.7 | 7 | 9 | 10 |
| Continuous Output(hp) | 3.4 | 3.8 | 5.2 | 6 | 8.2 | 9 |
| Power take off | Crankshaft or camshaft(camshaft PTO rpm is1/2) |
| Start System | Recoil or electric(optional) |
| Fuel tank capacity(L) | 2.5 | 3.5 | 5.5 |
| Lube oil capacity(L) | 0.75 | 1.1 | 1.65 |
| Dimensions( Lx Wx H)(mm) | 420X360X460 | 440X370X480 | 480X420X530 |
| Net Weight (recoil)(kg) | 27 | 33 | 48 |
| Net Weight (electric)(kg) | 32 | 38 | 53 |
| Fuel type | 0#,-10#,-20# |
| Lube oil type | CD Grade or SAE 10W-30,SAE 15W-40 |
| Option | Oil bath air cleaner |
| Engine(Diesel Engine) Specification |
| NAME | ITEM | LFD170F | LFD178F/FA | LFD186F/FA |
| Diesel Engine | EngineType | Single cylinda;4-stroke;air-cooled diesel engine |
| Combustion system | Direct Injection |
| Bore x Stroke(mm) | 70x55 | 78x62/78x64 | 86x70/86x72 |
| Displacement(CC) | 211 | 296/305 | 406/418 |
| Engine Speed(rpm) | 3000 | 3600 | 3000 | 3600 | 3000 | 3600 |
| Maximum Output(hp) | 3.8 | 4.2 | 5.7 | 7 | 9 | 10 |
| Continuous Output(hp) | 3.4 | 3.8 | 5.2 | 6 | 8.2 | 9 |
| Power take off | Crankshaft or camshaft(camshaft PTO rpm is1/2) |
| Start System | Recoil or electric(optional) |
| Fuel tank capacity(L) | 2.5 | 3.5 | 5.5 |
| Lube oil capacity(L) | 0.75 | 1.1 | 1.65 |
| Dimensions( Lx Wx H)(mm) | 420X360X460 | 440X370X480 | 480X420X530 |
| Net Weight (recoil)(kg) | 27 | 33 | 48 |
| Net Weight (electric)(kg) | 32 | 38 | 53 |
| Fuel type | 0#,-10#,-20# |
| Lube oil type | CD Grade or SAE 10W-30,SAE 15W-40 |
| Option | Oil bath air cleaner |
