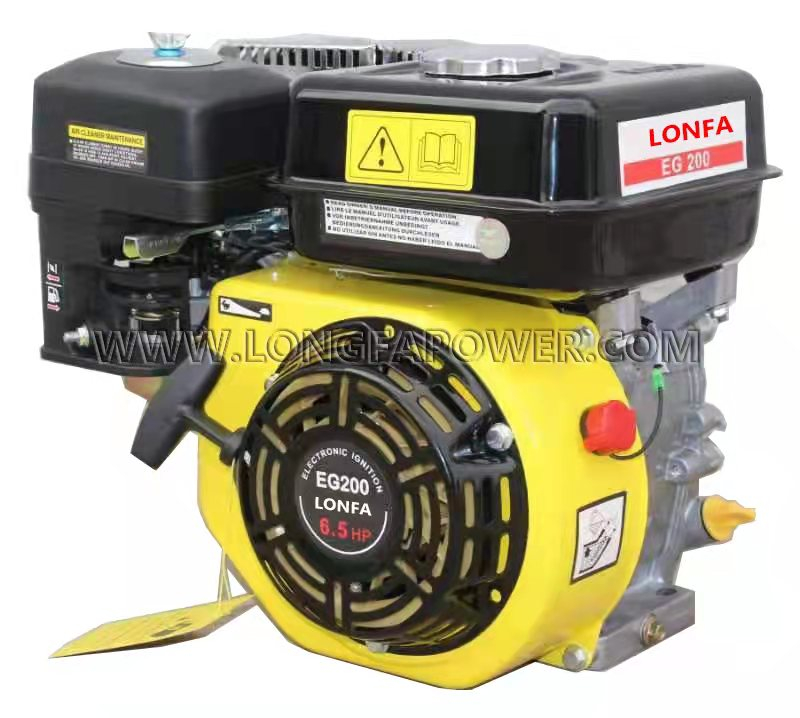

6.5HP GASOLINE/PETROL ENGINE FOR WATER PUMP USE

Gasoline engine ( LF168FE), suitable for assembling Water Pump
Availability:
Quantity:
  • EG200

  • LONFA

6.5HP GASOLINE/PETROL ENGINE FOR WATER PUMP USE!

6.5HP Gasoline engine,China Gasoline engine, Small Engine, Engine Power,Petrol Engine
 FEATURES:
Qualified mechanical seal device
Air-cooled;4-stroke;OHV;single cylinder
Transistor magneto
Compact structure
Easy Recoil/Electric start
196cc Displacement
Max Output Power 4.8kw
Overseas service centre
Gasoline engine ( LF168FE)
1-2

Engine(Gasoline Engine) Specification
NAME ITEM LF168F LF168F-1 LF170F LF188F LF190F
Gasoline Engine EngineType Air-cooled;4-stroke;OHV;single cylinda
Bore x Stroke(mm) 68x45 68x54 70x54 88x64 90x66
Diaplacement(CC) 163 196 210 389 420
Compression Ratio  8:5:1 8:5:1 8:5:1 8:0:1 8:0:1
Max.Power Output(kw) (5.5HP)4.1 (6.5HP)4.8 (7.0HP)5.1 (13HP)9.6 (15HP)11
Rated Power Output(kw) (4.0HP)3.0 (5.8HP)4.3 (6.0HP)4.4 (13HP)9.6 (11.7HP)8.6
Max Torque(N.m) 10.8 13.2 14 26.5 28
Ignition System Transistor magneto
Engine Oil Capacity(L) 0.6 0.6 0.6 1.1 1.1
Fuel capacity(L) 3.6 3.6 3.6 6.5 6.5
Min.Consumption of Fuel(g/kw.h) 360 360 360 325 325
Power Take Off Crankshaft or Camshaft
Crankshaft Direction Left
Dimensions( Lx Wx H)(mm) 390x330x350 390x330x350 390x330x350 515x420x490 515x450x490
Net Weight(kg) 15 16 17 31 32
Air Cleaner Semi-dry;Oil bath;Dual
