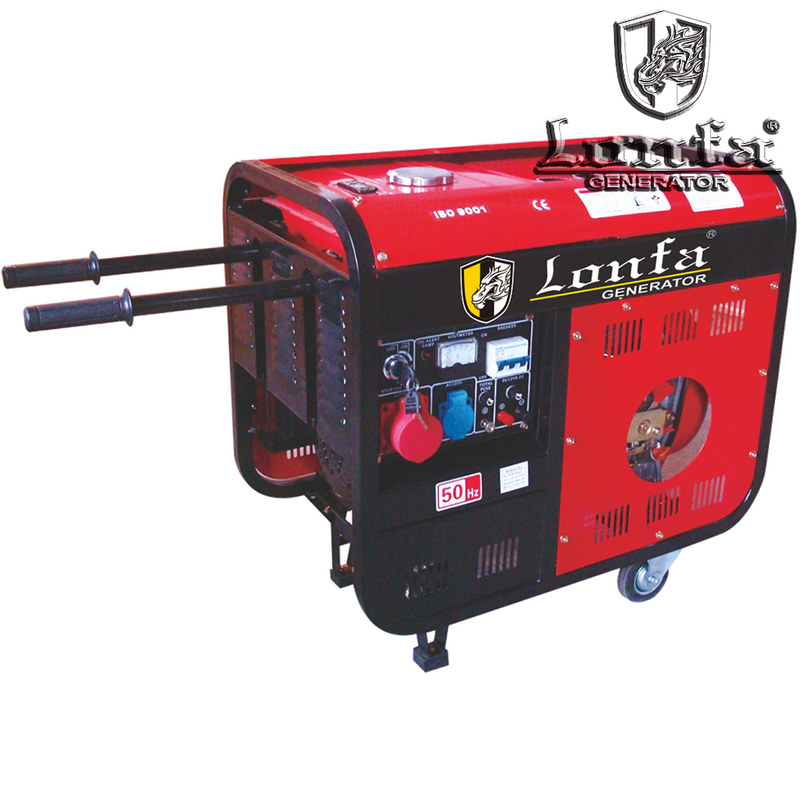

2.0kVA to 8.0kVA SEMI-CLOSED THREE PHASE DIESEL GENERATOR (LF7800/9000DSE-E) Product on Taizhou Longfa Machinery Co., Ltd.

● Output power 2.0kVA to 8.0kVA;Three Phase

● Semi-closed design ,low noise
●100% Pure Copper Wire Alternator or Economical Aluminium Wire Alternator is optional ;

●With perfect low oil pressure, leakage, power automatic protection system;

●Square Frame,with Two Handles & Wheels ;Compact, easy to move, reliable performance, durability

●Electric start with battery

●High efficiency, small no-load loss , 20% fuel-efficient than conventional generators ;

●Having grid voltage automatic compensation function

●One Year /12Months Quality Warranty

NAME	ITEM	OPEN TYPE DIESEL GENERATOR
Generator	Type	Revolving Magnetic Field,Self-exciting,2 Poles,Single-phase(or 3-phase)
	Rating frequency(Hz)	50/60
	Rated AC Output(kW)	1.8 / 2.0	3.0 / 3.3	4.2 / 4.6	5.0 / 5.5	6.5/7.0	7.5/8.0
	Max. AC Output(kW)	2.0 / 2.2	3.3 / 3.6	4.6 / 5.0	5.5 / 6.0	7.0/7.5	8.0/8.5
	Voltage(V)	110,115,120;220,230,240;110/220,115/230,120/240,(Single Phase)380,400,380/220,400/230(3 Phase)
	Voltage Regulator	Auto Regulating System
	Power factor(cos)	0.8/1.0
Engine	Model	LFD170	LFD178	LFD186	LFD186A		LFD186A
	Type	Air-cooled,Single-cylinder,4-stroke,Direct-injection,Diesel Engine
	Bore x Stroke(mm)	70x55	78x62	86x70	86x72	86x72	86x72
	Diaplacement(CC)	211	296	406	418	418	418
	Max Power	4.2/3600	6.0/3600	9.4/3600	10.0/3600	10.0/3600	10.0/3600
	Recommended Fuel	Light Diesel
	Fuel tank capacity(L)	12.5
	Engine Oil Capactiy(L)	0.75	1.1	1.65	1.65	1.65	1.65
	Lube Oil	SAE 10-30W
	Start System	Recoil or Electric/Recoil
Set	Operating Hour for 1 Tank Fuel(Hrs)	18	12	9	7	7	7
	Noise level(7m)dB(A)	82-84
	Packing Dimension Lx Wx H(mm)	625x465x530	695x470x560	755x490x605	755x490x605	755x490x605	755x490x605
	Gross Weight/Net Weight(kg)	60/58	73/71	92/90	97/95	99/97	101/99
