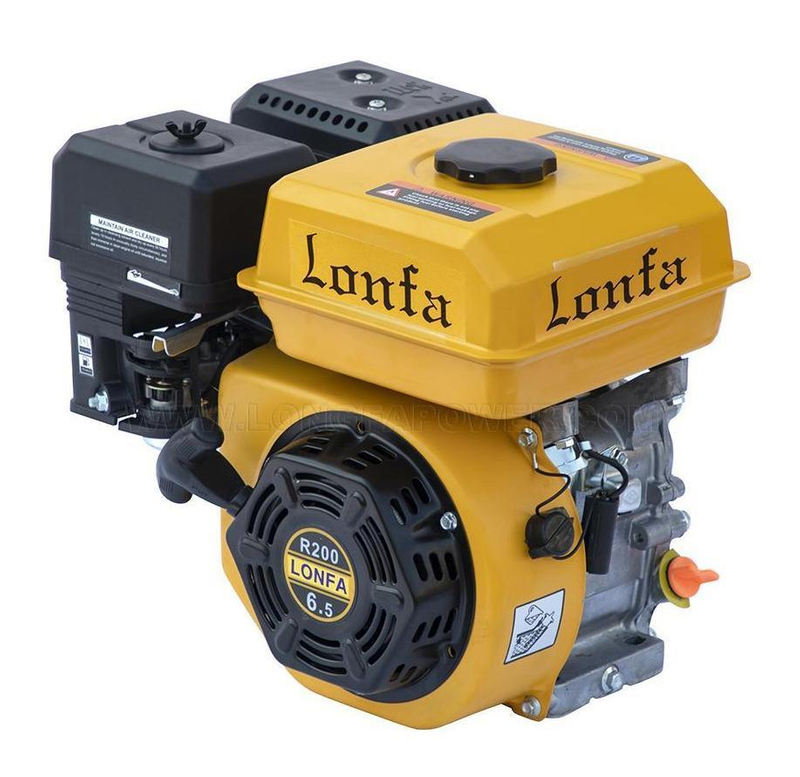

HOME » PRODUCTS » Engine » Gasoline Engine » 168F 170F OHV Gasoline Petrol Engine R160 R180 R200 R210
 |
| Quantity: | |
|---|---|
R160/R180/R200/R210
LONFA
| NAME | ITEM | R160 | R200 | R210 |
| Gasoline Engine | Engine Type | Air-cooled, 4-stroke, OHV; single cylinder | ||
| Bore Stroke(mm) | 68× 45 | 68× 54 | 70× 54 | |
| Displacement(cc) | 163 | 196 | 212 | |
| Compression Ratio | 8.5: 1 | 8.5: 1 | 8.5: 1 | |
| Max. Power Output(KW) | (5.5HP)4.1 | (6.5HP)4.8 | (7.5HP)5.1 | |
| Rated Power Output(KW) | (4.0HP)3.0 | (5.8HP)4.3 | (6.0HP)4.4 | |
| Max. Torque(N. m) | 10.8 | 13.2 | 14 | |
| Ignition System | Transistor magneto | |||
| Start system | Recoil/Electric | |||
| Engine Oil Capacity(L) | 0.6 | 0.6 | 0.6 | |
| Fuel Capacity(L) | 3.6 | 3.6 | 3.6 | |
| Min. Consumption of Fuel(g/kw. h) | 360 | 360 | 360 | |
| Power Take Off | Crankshaft or Camshaft | |||
| Crankshaft Direction | Left | |||
| Dimensions(LWH)(mm) | 390× 330× 350 | 390× 330× 350 | 390× 330× 350 | |
| Net Weight(kg) | 16 | 16 | 17 | |
| Air cleaner | Semi-dry; Oil bath; Dual | |||
| NAME | ITEM | R160 | R200 | R210 |
| Gasoline Engine | Engine Type | Air-cooled, 4-stroke, OHV; single cylinder | ||
| Bore Stroke(mm) | 68× 45 | 68× 54 | 70× 54 | |
| Displacement(cc) | 163 | 196 | 212 | |
| Compression Ratio | 8.5: 1 | 8.5: 1 | 8.5: 1 | |
| Max. Power Output(KW) | (5.5HP)4.1 | (6.5HP)4.8 | (7.5HP)5.1 | |
| Rated Power Output(KW) | (4.0HP)3.0 | (5.8HP)4.3 | (6.0HP)4.4 | |
| Max. Torque(N. m) | 10.8 | 13.2 | 14 | |
| Ignition System | Transistor magneto | |||
| Start system | Recoil/Electric | |||
| Engine Oil Capacity(L) | 0.6 | 0.6 | 0.6 | |
| Fuel Capacity(L) | 3.6 | 3.6 | 3.6 | |
| Min. Consumption of Fuel(g/kw. h) | 360 | 360 | 360 | |
| Power Take Off | Crankshaft or Camshaft | |||
| Crankshaft Direction | Left | |||
| Dimensions(LWH)(mm) | 390× 330× 350 | 390× 330× 350 | 390× 330× 350 | |
| Net Weight(kg) | 16 | 16 | 17 | |
| Air cleaner | Semi-dry; Oil bath; Dual | |||
