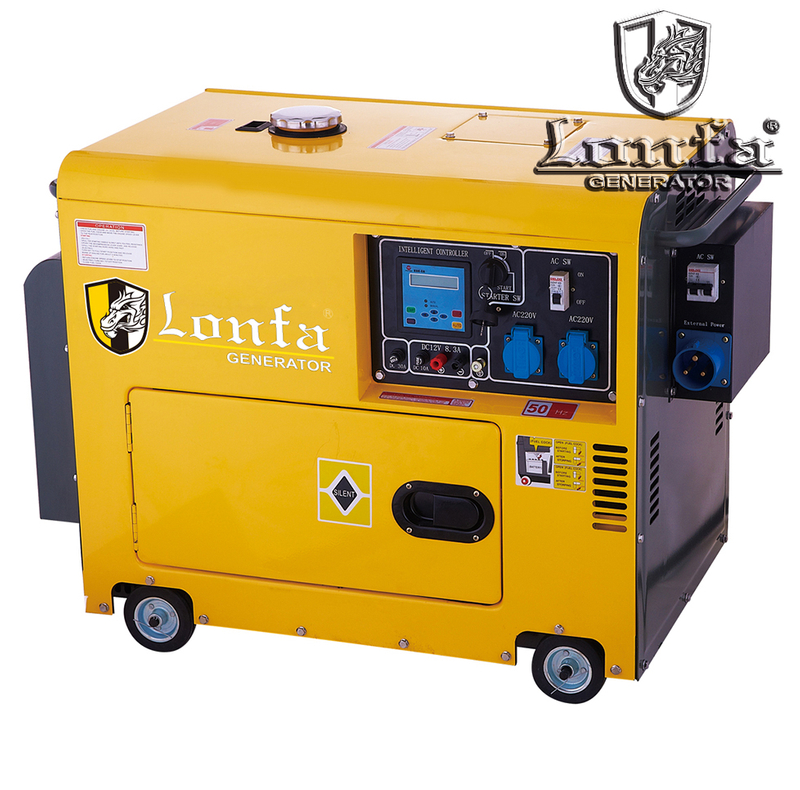

7.5kW 7.5kVA SILENT DIESEL GENERATOR (LF7800/9000DSE-A)

●Output power 2.0kVA to 8.0kVA;
●100% Pure Copper Wire Alternator ;
●With perfect low oil pressure, leakage, power automatic protection system;
●Used in today's DEUTZ technology; with small size, high power, super silent , good emissions, easy cold start characteristics, to meet stringent emission technology in today's world;
●Electric start with battery,easy portable to use ;
●High efficiency, small no-load loss , 20% fuel-efficient than conventional generators
●Having grid voltage automatic compensation function
●One Year /12Months Quality Warranty

NAME	ITEM	SILENT TYPE
Generator	Type	Revolving Magnetic Field,Self-exciting,2 Poles,Single-phase(or 3-phase)
	Rating frequency(Hz)	50Hz/60Hz
	Rated AC Output(kW)	3.0 / 3.3	4.2 / 4.6	5.0 / 5.5	6.5/7.0	7.5/8.0
	Max. AC Output(kW)	3.3 / 3.6	4.6 / 5.0	5.5 / 6.0	7.0/7.5	8.0/8.5
	Voltage(V)	110,115,120;220,230,240;110/220,115/230,120/240,(Single Phase)380,400,380/220,400/230(3 Phase)
	Voltage Regulator	Auto Regulating System
	Power factor(cos)	0.8/1.0
Engine	Model	LFD178	LFD186	LFD186A	LFD186A	LFD186A
	Type	Air-cooled,Single-cylinder,4-stroke,Direct-injection,Diesel Engine
	Bore x Stroke(mm)	78x62	86x70	86x72	86x72	86x72
	Diaplacement(CC)	296	406	418	418	418
	Max Power	6.0/3600	9.4/3600	10/3600	10/3600	10/3600
	Recommended Fuel	Light Diesel
	Fuel tank capacity(L)	16
	Engine Oil Capactiy(L)	1.1	1.65	1.65	1.65	1.65
	Lube Oil	SAE 10-30W
	Start System	Electric Start
Set	Operating Hour for 1 Tank Fuel(Hrs)	15	11	9	9	9
	Noise level(7m)dB(A)	70-72
	Packing Dimension Lx Wx H(mm)	875x565x780	955x565x780	955x565x780	955x565x780	955x565x780
	Gross Weight/Net Weight(kg)	135/130	170/165	175/170	177/172	179/174
