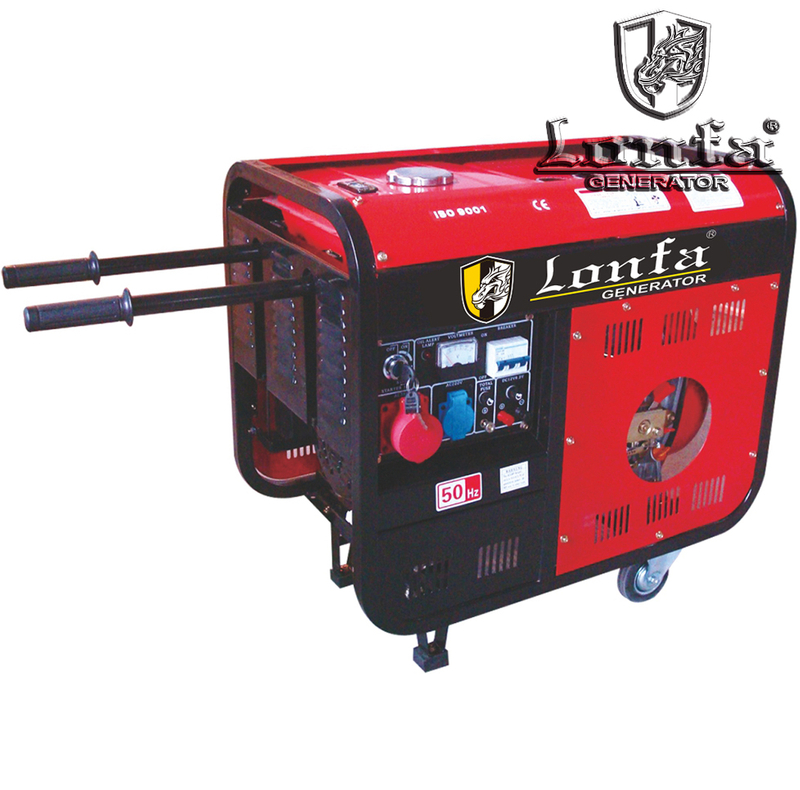

HOME » PRODUCTS » Generator » For Business Office & Shop » 2.0kVA - 8.0kVA SEMI-CLOSED DIESEL GENERATOR (LF3800/5800DCE-F)
 |
| Quantity: | |
|---|---|
LONFA
LF3800/5800DCE-F
属性值
属性值
| NAME | ITEM | OPEN TYPE DIESEL GENERATOR | |||||
| Generator | Type | Revolving Magnetic Field,Self-exciting,2 Poles,Single-phase(or 3-phase) | |||||
| Rating frequency(Hz) | 50/60 | ||||||
| Rated AC Output(kW) | 1.8 / 2.0 | 3.0 / 3.3 | 4.2 / 4.6 | 5.0 / 5.5 | 6.5/7.0 | 7.5/8.0 | |
| Max. AC Output(kW) | 2.0 / 2.2 | 3.3 / 3.6 | 4.6 / 5.0 | 5.5 / 6.0 | 7.0/7.5 | 8.0/8.5 | |
| Voltage(V) | 110,115,120;220,230,240;110/220,115/230,120/240,(Single Phase)380,400,380/220,400/230(3 Phase) | ||||||
| Voltage Regulator | Auto Regulating System | ||||||
| Power factor(cos) | 0.8/1.0 | ||||||
| Engine | Model | LFD170 | LFD178 | LFD186 | LFD186A | LFD186A | |
| Type | Air-cooled,Single-cylinder,4-stroke,Direct-injection,Diesel Engine | ||||||
| Bore x Stroke(mm) | 70x55 | 78x62 | 86x70 | 86x72 | 86x72 | 86x72 | |
| Diaplacement(CC) | 211 | 296 | 406 | 418 | 418 | 418 | |
| Max Power | 4.2/3600 | 6.0/3600 | 9.4/3600 | 10.0/3600 | 10.0/3600 | 10.0/3600 | |
| Recommended Fuel | Light Diesel | ||||||
| Fuel tank capacity(L) | 12.5 | ||||||
| Engine Oil Capactiy(L) | 0.75 | 1.1 | 1.65 | 1.65 | 1.65 | 1.65 | |
| Lube Oil | SAE 10-30W | ||||||
| Start System | Recoil or Electric/Recoil | | | ||||
| Set | Operating Hour for 1 Tank Fuel(Hrs) | 18 | 12 | 9 | 7 | 7 | 7 |
| Noise level(7m)dB(A) | 82-84 | | | ||||
| Packing Dimension Lx Wx H(mm) | 625x465x530 | 695x470x560 | 755x490x605 | 755x490x605 | 755x490x605 | 755x490x605 | |
| Gross Weight/Net Weight(kg) | 60/58 | 73/71 | 92/90 | 97/95 | 99/97 | 101/99 | |
