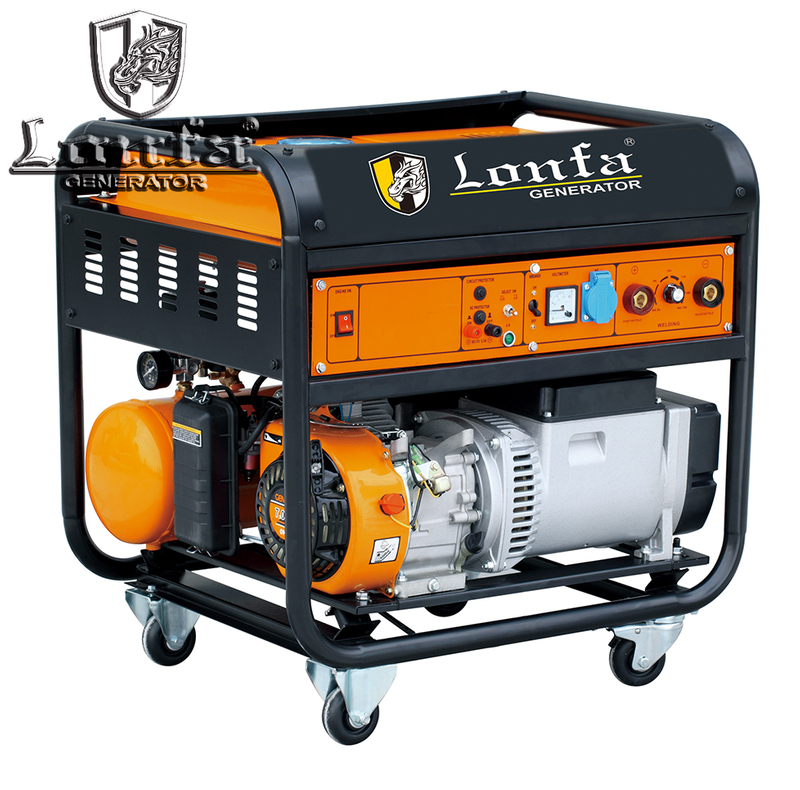

WELDING COMPRESSOR GENERATOR(LF10-GAWA)

Gasoline 4 in one mobile work station incorporates Generator, Welder,Compressor and Battery Charger in one easy to use for your outside work and repair.
It's compact designed,Convinient for operation and reliable quality.

Quantity:



Inquire

Brand:
LONFA/ANDITIGER/ANDI
Code:
LF10-GAWA

Features
Technical Parameter

Self-made reliable Gasoline Engine or Original Honda Engine is Optional;

Hand Start or Electrict Start is Optional;

Single Phase or Three Phase is Optional;

With Handles & Wheels or Without is Optional;

Packed with strong carton with pallet.

GASOLINE WELDING GENERATOR (SHW190/210/300-B)

GASOLINE WELDING GENERATOR (SHW190/210/300-A)

NAME	ITEM	SHW190	SHW210R	SHW300E
Engine	Engine Model	GX390		GX620
	Type	4-Stroke,OHV,1cylinda		4-Stroke,OHV,2 cylinda
	Displacement(CC)	389		614
	Bore x Stroke(mm)	88x64		77x72
	Cooling system	Air cooling
	Ignition system	Transistorized magneto ignition
	Start system	Recoil/Electric		Electric
Generator	Rated voltage(V)	220(AC)		220(DC)
	Rating frequency(Hz)	50/60		60
	Rated current	9.1A(AC)	15A(AC)	10.0A(DC)
	Rated output 50Hz	2.5kVA(AC)	3.0kVA(AC)	5.0kVA(AC)
	Rated output 60Hz	3kVA(AC)	3.5kVA(AC)	5.0kVA(AC)
	Rated power factor	0.8/1.0
	Phase	Single
	Type	2-pole,rotating type		24-pole,rotating type
DC Welder	Rated Max.current(A)	140	180	280
	Load voltage(V)	27.2	28	32
	Current range(A)	50-190	50-210	50-280
	Max.current duty cycle(%)	50	32	20
	Applicable welding rod diameter(mm)	2.5-5.0	2.5-5.0	2.5-6.0
	Rated Revolving Speed(r/min)	3600
	No-load voltage(A)	70	52	82
	Idle control	Automatic
	Rectifier type	Six phase half wave rectifier		Three phase full wave rectifier
Other	Fuel tank capacity(L)	17	25	30
	Length x width x height(mm)	690x510x520	690x535x540	953x617x622
	Net weight(kg)	86	88	180

NAME	ITEM	SHW190	SHW210R	SHW300E
Engine	Engine Model	GX390		GX620
	Type	4-Stroke,OHV,1cylinda		4-Stroke,OHV,2 cylinda
	Displacement(CC)	389		614
	Bore x Stroke(mm)	88x64		77x72
	Cooling system	Air cooling
	Ignition system	Transistorized magneto ignition
	Start system	Recoil/Electric		Electric
Generator	Rated voltage(V)	220(AC)		220(DC)
	Rating frequency(Hz)	50/60		60
	Rated current	9.1A(AC)	15A(AC)	10.0A(DC)
	Rated output 50Hz	2.5kVA(AC)	3.0kVA(AC)	5.0kVA(AC)
	Rated output 60Hz	3kVA(AC)	3.5kVA(AC)	5.0kVA(AC)
	Rated power factor	0.8/1.0
	Phase	Single
	Type	2-pole,rotating type		24-pole,rotating type
DC Welder	Rated Max.current(A)	140	180	280
	Load voltage(V)	27.2	28	32
	Current range(A)	50-190	50-210	50-280
	Max.current duty cycle(%)	50	32	20
	Applicable welding rod diameter(mm)	2.5-5.0	2.5-5.0	2.5-6.0
	Rated Revolving Speed(r/min)	3600
	No-load voltage(A)	70	52	82
	Idle control	Automatic
	Rectifier type	Six phase half wave rectifier		Three phase full wave rectifier
Other	Fuel tank capacity(L)	17	25	30
	Length x width x height(mm)	690x510x520	690x535x540	953x617x622
	Net weight(kg)	86	88	180
