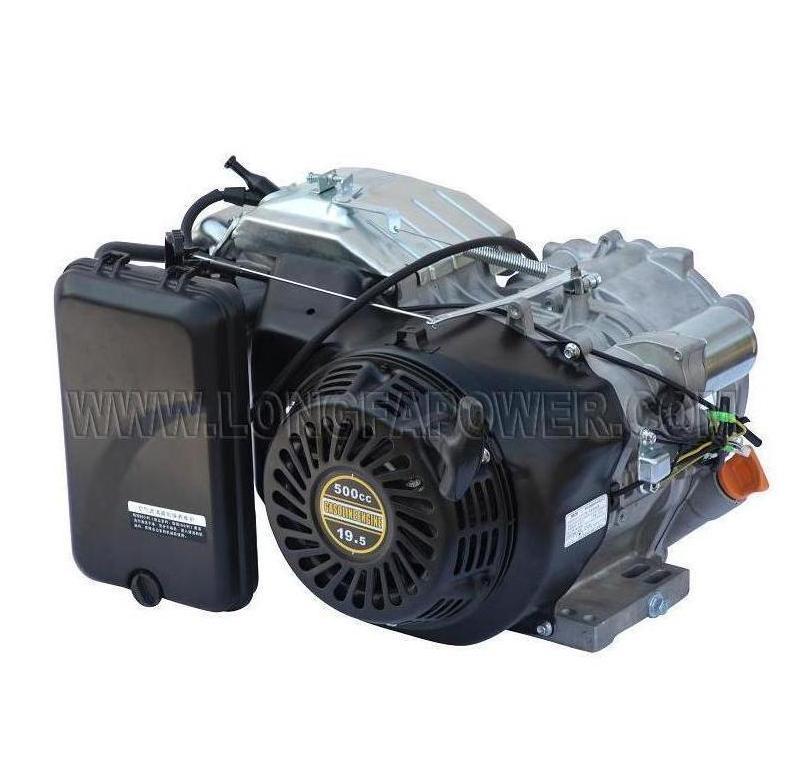

Half Gasoline Engine 15HP 19HP 420cc 500cc Gasoline Petrol Engine for Generator

Half Gasoline Engine 15HP 19HP 420cc 500cc Gasoline Petrol Engine for Generator

Gasoline engine ( LF168FE), suitable for assembling Water Pump

Availability:

Quantity:



Inquire

Brand:
LONFA

Product Description
Product Description

FEATURES:
* Qualified mechanical seal device
* Air-cooled;4-stroke;OHV;single cylinder
* Transistor magneto
* Compact structure
* Easy Recoil/Electric start
* 196cc Displacement
* Max Output Power 4.8kw
* Overseas service centre
* Gasoline engine ( LF168FE)

5.5kW 6kVA Gasoline Generator Powered by Original Honda GX390 Engine with ATS

Hondadesign engine Portable 3500W 3.5KVA 7HP Gasoline Petrol Gas Generator

Engine(Gasoline Engine) Specification
NAME	ITEM	LF168F	LF168F-1	LF170F	LF188F	LF190F
Gasoline Engine	EngineType	Air-cooled;4-stroke;OHV;single cylinda
	Bore x Stroke(mm)	68x45	68x54	70x54	88x64	90x66
	Diaplacement(CC)	163	196	210	389	420
	Compression Ratio	8:5:1	8:5:1	8:5:1	8:0:1	8:0:1
	Max.Power Output(kw)	(5.5HP)4.1	(6.5HP)4.8	(7.0HP)5.1	(13HP)9.6	(15HP)11
	Rated Power Output(kw)	(4.0HP)3.0	(5.8HP)4.3	(6.0HP)4.4	(13HP)9.6	(11.7HP)8.6
	Max Torque(N.m)	10.8	13.2	14	26.5	28
	Ignition System	Transistor magneto
	Engine Oil Capacity(L)	0.6	0.6	0.6	1.1	1.1
	Fuel capacity(L)	3.6	3.6	3.6	6.5	6.5
	Min.Consumption of Fuel(g/kw.h)	360	360	360	325	325
	Power Take Off	Crankshaft or Camshaft
	Crankshaft Direction	Left
	Dimensions( Lx Wx H)(mm)	390x330x350	390x330x350	390x330x350	515x420x490	515x450x490
	Net Weight(kg)	15	16	17	31	32
	Air Cleaner	Semi-dry;Oil bath;Dual

Engine(Gasoline Engine) Specification
NAME	ITEM	LF168F	LF168F-1	LF170F	LF188F	LF190F
Gasoline Engine	EngineType	Air-cooled;4-stroke;OHV;single cylinda
	Bore x Stroke(mm)	68x45	68x54	70x54	88x64	90x66
	Diaplacement(CC)	163	196	210	389	420
	Compression Ratio	8:5:1	8:5:1	8:5:1	8:0:1	8:0:1
	Max.Power Output(kw)	(5.5HP)4.1	(6.5HP)4.8	(7.0HP)5.1	(13HP)9.6	(15HP)11
	Rated Power Output(kw)	(4.0HP)3.0	(5.8HP)4.3	(6.0HP)4.4	(13HP)9.6	(11.7HP)8.6
	Max Torque(N.m)	10.8	13.2	14	26.5	28
	Ignition System	Transistor magneto
	Engine Oil Capacity(L)	0.6	0.6	0.6	1.1	1.1
	Fuel capacity(L)	3.6	3.6	3.6	6.5	6.5
	Min.Consumption of Fuel(g/kw.h)	360	360	360	325	325
	Power Take Off	Crankshaft or Camshaft
	Crankshaft Direction	Left
	Dimensions( Lx Wx H)(mm)	390x330x350	390x330x350	390x330x350	515x420x490	515x450x490
	Net Weight(kg)	15	16	17	31	32
	Air Cleaner	Semi-dry;Oil bath;Dual
